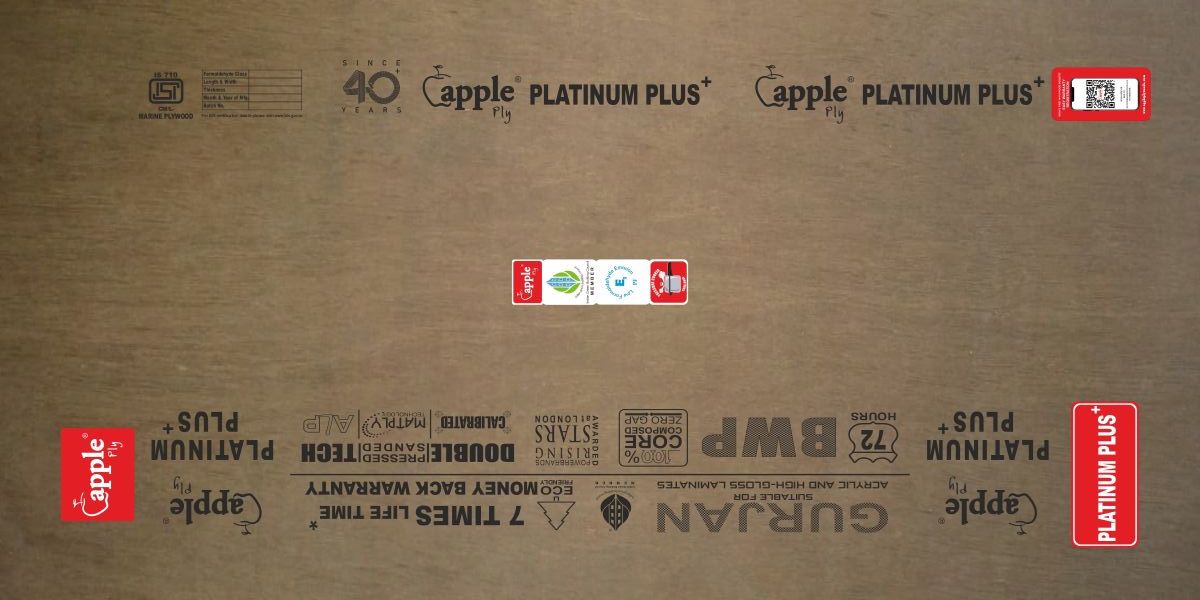

AK Appleply Platinum Plus+ — Marine Grade Plywood (IS 710 Certified)
AK Appleply Platinum Plus+ is a premium BWP-grade marine plywood engineered to perform in environments with constant exposure to moisture and humidity. Designed to resist rot and delamination, it’s built for demanding applications like ship interiors, docks, kitchens, bathrooms, and other high-humidity zones.
Every sheet undergoes vacuum pressure treatment with approved preservatives, ensuring long-term protection against borers and decay. The core is precisely composed using an automatic core composer machine to achieve a uniform 8’x4’ sheet. Double-pressing technology, combined with advanced top-and-bottom calibration, guarantees superior thickness uniformity and a smooth surface ideal for high-gloss or acrylic laminates.
Features
Common Size
Common Thickness Range
4mm to 19mm
Key Features of AK Appleply Platinum Plus+ — Marine Grade Plywood
- Certified to IS 710 – Marine Grade standards
- Made from Gurjan and Eucalyptus hardwood species
- Bonded with BWP-grade resin (72-hour tested)
- Vacuum pressure treated for borer and fungus resistance
- Double-calibrated Matply technology for precise thickness and flatness
- 100% core composed, zero-gap panels for maximum strength
- Stitched core & long panel construction for dimensional stability
- Highly suitable for acrylic laminates and high-gloss finishes
- 7x lifetime money-back warranty
- Resistant to – Borer, Fungal Infestation.
Laboratory Test Report of Ak Apple Ply
Platinum Plus+ (Marine Plywood-as Per is 710:2024)
Size: 2440x1220x19mm
| No. | TESTS | PRESCRIBED VALUE | VALUE OBTAINED |
|---|---|---|---|
| 1. | Dimensions, mm a) Length b) Width |
+6mm, -0mm +3mm, -0mm |
+2 +1 |
| 2. | Thickness | +/-5% | +1.1% |
| 3. | Squareness, % | Max. 0.2 | 0.06 |
| 4. | Edge straightness | Max. 0.2 | 0.05 |
| 5. | Workmanship & Finish | As per clause 7 | Conforms |
| 6. | Moisture content, % | 5-15 | 10.5 |
| 7. |
Glue adhesion strength in dry state i) Glue adhesion strength, N ii) Adhesion of plies (Knife test) |
1350 1100 Min. Pass standard |
1520 1450 Excellent |
| 8. |
Water resistance test (After 72 hrs. boiling), N i) Glue adhesion strength, N ii) Adhesion of plies (Knife test) |
1000 800 Min. Pass standard |
1160 1080 Excellent |
| 9. | Tensile strength, N/mm² i) Parallel to the face grain ii) Perpendicular to face grain iii) Sum of the tensile strength |
Min. 36.0 Min. 29.0 Min. 84.50 |
51 44 95 |
| 10. |
Mycological test i) Glue adhesion strength, N ii) Adhesion of plies (Knife test) |
1000 a) No separation at edges |
1140 a) No separation at edges |
| 11. |
Static bending strength, Modulus of Elasticity, N/mm² ii) Across the face grain |
6400 5700 4600 4100 |
7584 6856 5985 5628 |
| 12. |
Modulus of Rupture, N/mm² ii) Across the face grain |
43 38 35 31 |
59 52 49 44 |
| 13. |
Wet bending strength, Modulus of Elasticity, N/mm² ii) Across the face grain |
3200 2900 2300 2100 |
4925 4625 4252 3857 |
| 14. |
Modulus of Rupture, N/mm² ii) Across the face grain |
21 19 17 15 |
38 29 28 24 |
| 15. | Retention of Preservative chemicals, Kg/m³ | Min. 12 | 12.984 |
| 16. | Formaldehyde Class | Formaldehyde Class-E1/E2 | E1 |
