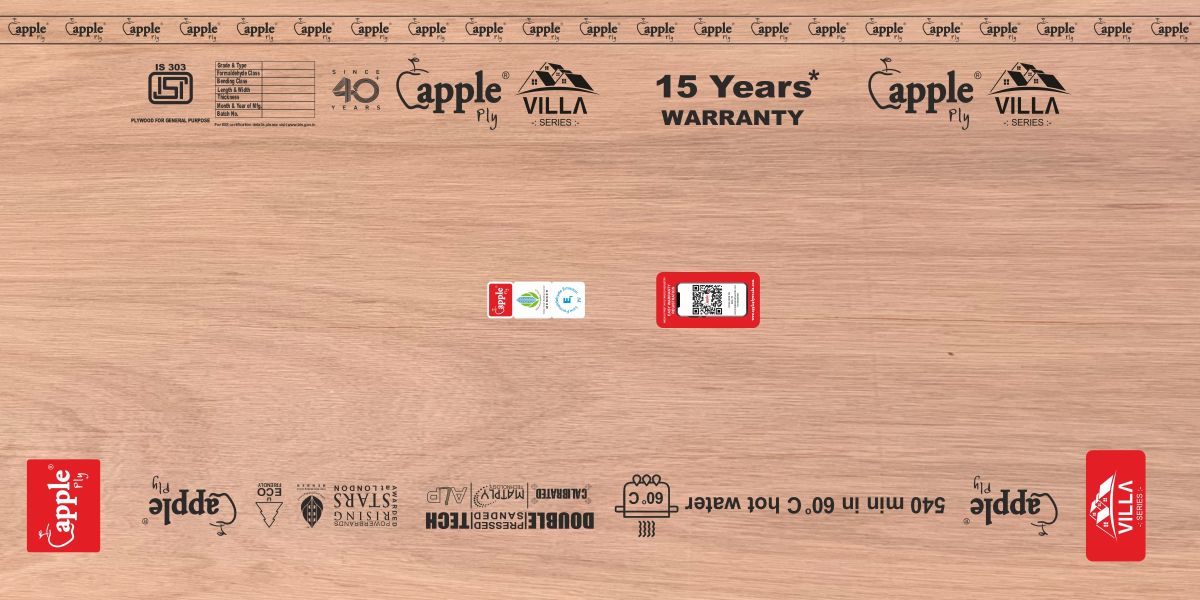

AK Appleply Villa — MR Grade (IS 303 Certified)
AK Appleply Villa MR Grade plywood is built from durable hardwood species and bonded with high-quality MR-grade resin. Tested for 540 minutes in 60°C hot water, it offers dependable moisture resistance and long-term performance in dry and moderately humid conditions.
Features
Common Size
8 feet x 4 feet, 7 feet x 4feet, 6 feet x 4 feet, 8 feet x 3 feet, 7 feet x 3 feet, 6 feet x 3 feet
Common Thickness Range
4mm to 19mm
Key Features of AK Appleply Villa — MR Grade
- Certified to IS 303 – MR Grade standards
- Made from selected hardwood species
- Bonded with MR-grade resin
- Tested for 540 minutes in 60°C hot water
- Double-calibrated Matply technology for precision finish
- 15-year warranty
- Resistant to – Borer Infestation.
Laboratory Test Report of AK Appleply Villa
Plywood for General Purposes
(Mr Grade as Per is 303:2024)
2440x1220x19mm
| SL NO | TESTS | PRESCRIBED VALUE | RESULTS |
|---|---|---|---|
| 1 | Surface quality requirements and permissible defects | Conforms as per Clause 5, Table 1& 2 | Satisfactory |
| 2 | Dimensions, mm a) Length b) Width c) Thickness |
Tolerance +6mm -3mm Tolerance +3mm -1mm +/-5% |
+2mm +1mm +0.52% |
| 3 | Squareness, % | 0.2 | 0.06 |
| 4 | Edge straightness, % | 0.2 | 0.05 |
| 5 | Workmanship and Finish | Conforms as per clause 9 | Conforms |
| 6 | Resistance to water, Adhesion of plies | Pass standard | Excellent |
| 7 | Mycological Test (Adhesion of plies) | Pass standard | Excellent |
| 8 | Moisture Content % | 5-15 | 10.3 |
| 9 |
Static Bending Strength
i) Parallel to the face grain ii) Perpendicular to the face grain |
3400
2300 |
4287
3857 |
| 10 |
Modulus of Rupture, N/mm² i) Parallel to the Face grain ii) Perpendicular to the Face grain |
26
17 |
38
29 |
