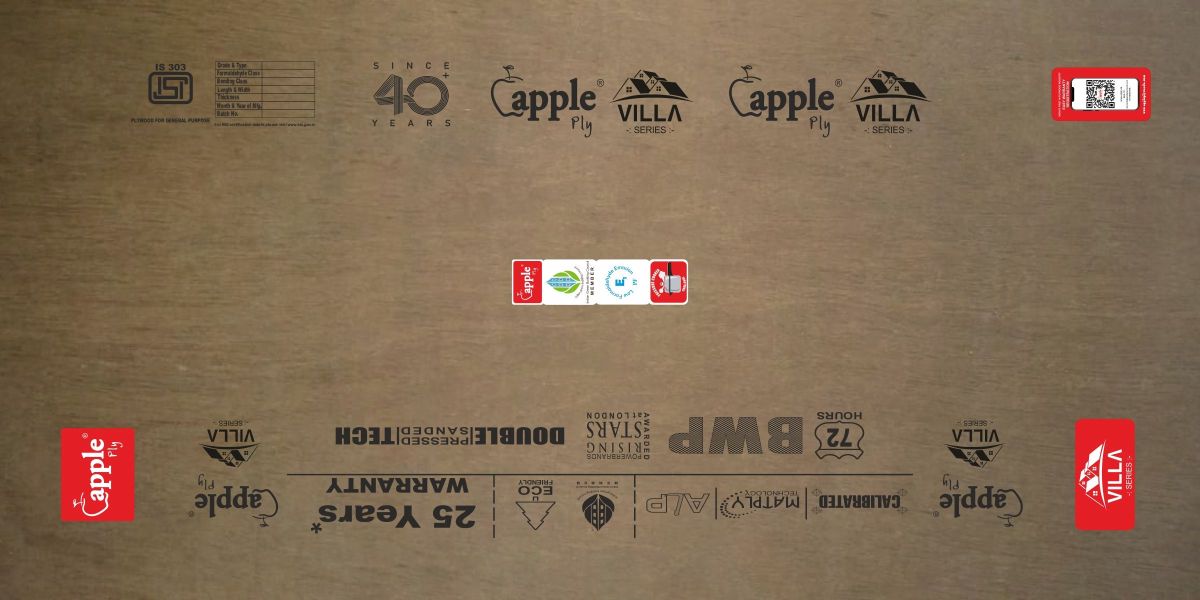

AK Appleply Villa BWP (IS 303 Certified)
Villa BWP is an affordable yet durable plywood option, designed for long-term use in interiors exposed to moisture.
Features
Common Size
8 feet x 4 feet, 7 feet x 4feet
Common Thickness Range
4mm to 19mm
Key Features of AK Appleply Diamond Plus – Fire Retardant Plywood
- IS 303 BWP-grade compliant
- Hardwood construction
- 72-hour BWP performance
- Double-calibrated Matply technology
- 25-year warranty
- Resistant to – Borer, Fungal Infestation.
Laboratory Test Report of Ak Apple Ply Villa
Plywood for General Purposes(BWP Grade as Per is 303:2024)
Size: 2440x1220x19 mm
| SL NO | TESTS | PRESCRIBED VALUE | RESULTS |
|---|---|---|---|
| 1 | Surface quality requirements and permissible defects | Conforms as per Clause 5, Table 1 & 2 | Satisfactory |
| 2 | Dimensions, mm a) Length b) Width c) Thickness |
Tolerance +6mm / -3mm Tolerance +3mm / -1mm +/-5% |
+2mm +1mm +0.6% |
| 3 | Squareness, % | 0.2 | 0.06 |
| 4 | Edge straightness, % | 0.2 | 0.05 |
| 5 | Workmanship and Finish | Conforms as per Clause 9 | Conforms |
| 6 | Resistance to water, Adhesion of plies | Pass standard | Excellent |
| 7 | Resistance to micro organisms (Adhesion of plies) | Pass standard | Excellent |
| 8 | Moisture Content % | 5–15 | 10.7 |
| 9 | Static Bending Strength Modulus of Elasticity, N/mm² i) Parallel to the face grain a) Average b) Min. Individual ii) Perpendicular to the Face grain a) Average b) Min. Individual |
4300 3800 2900 2500 |
5258 5012 4652 4025 |
| 10 | Modulus of Rupture, N/mm² i) Parallel to the Face grain a) Average b) Min. Individual ii) Perpendicular to the Face grain a) Average b) Min. Individual |
34 31 23 21 |
50 42 35 32 |
