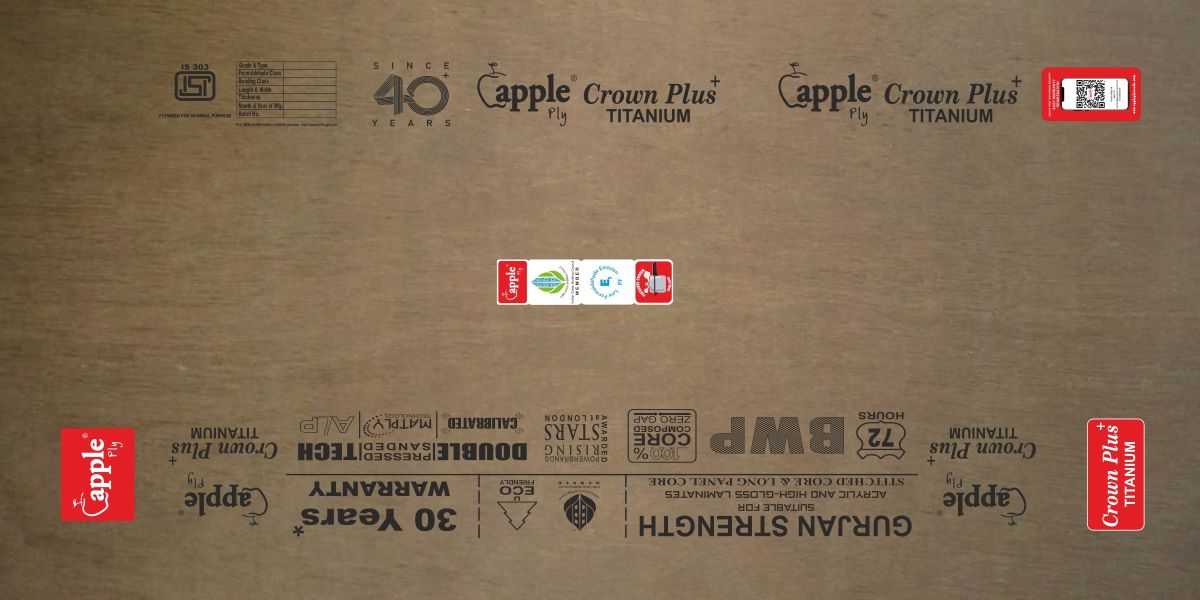

AK Appleply Crown Plus+ Titanium
(IS 303 Certified)
Crown Plus+ Titanium is crafted from selected hardwood species, engineered for consistency and stability. Ideal for both residential and commercial interiors where strength and water resistance are essential.
Features
Common Size
8 feet x 4 feet, 7 feet x 4feet
Common Thickness Range
4mm to 19mm
Key Features of AK Appleply Crown Plus+ Titanium
- IS 303 BWP-grade compliant
- Eucalyptus mix compression
- 72-hour BWP performance
- Double-calibrated Matply technology
- 100% core composed, zero-gap panels
- Stitched core & long panel core
- 30-year warranty
- Resistant to – Borer, Fungal Infestation.
Laboratory Test Report of Ak Apple Ply Crown
Plywood for General Purposes
(Mr Grade as Per is 303:2024)
2440x1220x19mm
| SL NO | TESTS | PRESCRIBED VALUE | RESULTS |
|---|---|---|---|
| 1 | Surface quality requirements and permissible defects | Conforms as per Clause 5, Table 1 & 2 | Satisfactory |
| 2 | Dimensions, mm a) Length b) Width c) Thickness |
Tolerance +6mm / -3mm Tolerance +3mm / -1mm +/-5% |
+2mm +1mm +0.52% |
| 3 | Squareness, % | 0.2 | 0.06 |
| 4 | Edge straightness, % | 0.2 | 0.05 |
| 5 | Workmanship and Finish | Conforms as per clause 9 | Conforms |
| 6 | Resistance to water, Adhesion of plies | Pass standard | Excellent |
| 7 | Mycological Test (Adhesion of plies) |
Pass standard | Excellent |
| 8 | Moisture Content % | 5–15 | 10.6 |
| 9 |
Static Bending Strength Modulus of Elasticity, N/mm² i) Parallel to the face grain a) Average b) Min. Individual ii) Perpendicular to the Face grain |
3400 3100 2300 |
4589 4325 4125 |
| 10 |
Modulus of Rupture, N/mm² i) Parallel to the Face grain a) Average b) Min. Individual ii) Perpendicular to the Face grain |
26 23 17 |
42 36 33 |
